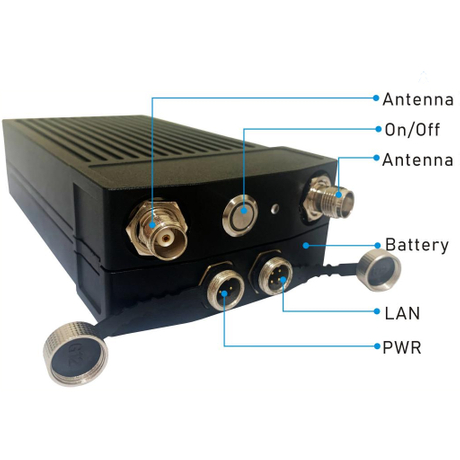

Handheld MIMO Multiple Hops MESH Smart Radio

  • FD-6700

Product Description

Product Features


Tri-band Frequency

➢800Mhz/1.4Ghz/2.4Ghz selectable on software depend on your application


Removable & Rechargeable Battery For 10hours Continuous Working

Tactical MESH Networking





Vol: DC12V

Capacity: 5000mAh/55.5Wh


Teams in the harshest environments equipped with the FD-6700 will stay connected and able to share critical information.











Strong NLOS Ability

When you take task in cities, tunnels,  dense forest and mountains, FD-6700 works in these complex RF environments to make your data move faster and longer by using its 2x2 MIMO technology.


The self-forming / self-healing MANET technology routes your data around obstacles, maximizing your network performance and mobility. The more radios you employ, the more connected you become.





Real-Time Situational Awareness


By providing with everyone's positions and full motion HD video with integrated GPS to enable leaders make quick decision




Specification


Modulation QPSK, 16QAM, 64QAM
Working Frequency

806-826Mhz

1427.9-1447.9Mhz

2401.5-2481.5Mhz
Bandwidth 1.4Mhz/3Mhz/5Mhz/10Mhz/20Mhz
Transmitting RF Power 23dBm/25dBm(default), 33dBm or more(On request)
Transmitting Rate Max: 30Mbps
Receiving Sensitivity

                  20Mhz: -100dBm

                  10MHz: -103dBm

800Mhz     5Mhz: -106dBm

                  3Mhz: -108dBm

                  20Mhz: -100dBm

                  10MHz: -103dBm

1.4Ghz       5Mhz: -106dBm

                  3Mhz: -108dBm

                  20Mhz: -99dBm

                  10MHz: -102dBm

2.4Ghz       5Mhz: -104dBm

                  3Mhz: -106dBm
Network Mode Centerless Self-healing/self-forming mesh
Node

 32nodes in a single network
Maximum cascade hops 16Hops
Dimension
 170*94*43mm(exclude battery)
Weight 600g(exclude battery)
Working Temperature -20℃~+75℃
Storage Temperature -40℃~+85℃
Storage Humidity 5%~95%
